Green 15kPa Horizontal Bed Roaster Electromagnetic Heating Vertical Bed Roaster
|
Green 15kPa Horizontal Bed Roaster Electromagnetic Heating Vertical Bed Roaster
| Place of Origin | China |
| Brand Name | Zoomline |
Product Details
Particle Size Range:
0.1 - 5Mm
Material:
Solid Particles
Scale-Up Potential:
High
Temperature Range:
300-1000°C
Uniformity Of Roasting:
High
Automation Level:
High
Operating Cost:
Low
Environmental Impact:
Low
Highlight:
Green horizontal bed roaster
,15kPa horizontal boiling roaster
,electromagnetic heating vertical bed roaster
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Wooden box or film
Delivery Time
30-50 days
Payment Terms
T/T
Supply Ability
Negotiable
Product Description

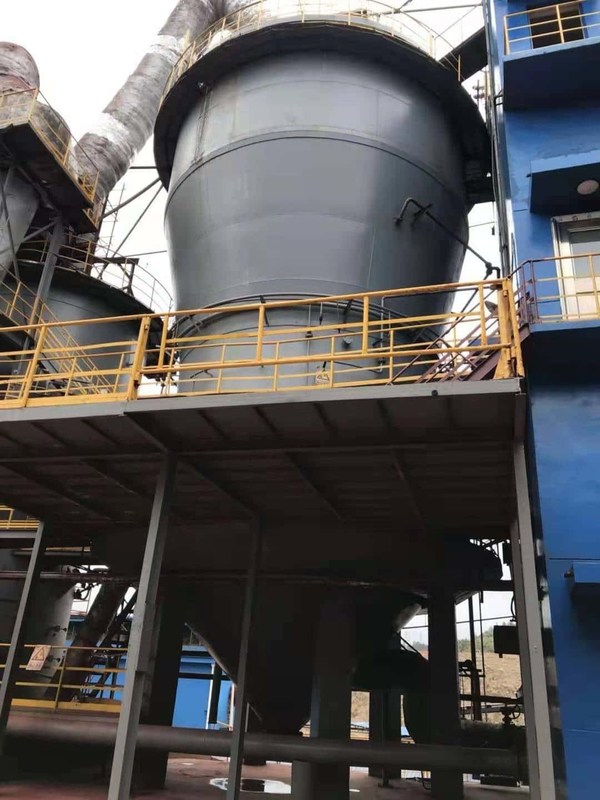

Green 15kPa Horizontal Bed Roaster Electromagnetic Heating Vertical Bed Roaster
Our fluidized bed calciner furnace utilizes advanced gas-solid fluidization technology to achieve uniform heat transfer and precise temperature control, making it ideal for continuous or batch processing of granular or powder materials. With modular design and automation features, it ensures high energy efficiency, reduced emissions, and scalable production.
Key Specifications
| Attribute | Value |
|---|---|
| Particle Size Range | 0.1 - 5mm |
| Material | Solid Particles |
| Temperature Range | 300-1000°C |
| Uniformity Of Roasting | High |
| Automation Level | High |
| Operating Cost | Low |
| Environmental Impact | Low |
| Scale-Up Potential | High |
Technical Parameters
| Parameter | Value |
|---|---|
| Processing Capacity | 0.5 to 50 tons per day (TPD) |
| Bed Layer Pressure Drop | 5 to 15 kPa |
| Air Flow Rate | 10-100 m/s |
| Residence Time | 5-30 Minutes |
| Thermal Efficiency | ≥85% |
| Reactor Material | 310 Stainless Steel / Inconel Nickel Alloy / Corrosion-resistant ceramic lining |
Available Models
| Model | Diameter (mm) | Capacity (t/h) | Power (kW) | Weight (t) |
|---|---|---|---|---|
| ZLFT - 0.6m² | 900 | 0.1 - 1.2 | 5.5 - 7.5 | 3.5 |
| ZLFT - 1.1m² | 1200 | 0.3 - 2.7 | 11 - 15 | 5.9 |
| ZLFT - 3m² | 2000 | 1.1 - 3.5 | 22 - 30 | 17 |
| ZLFT - 5m² | 2600 | 3.8 - 7.9 | 30 - 45 | 26 |
| ZLFT - 16m² | 4600 | 15 - 30 | 90 - 110 | 55 |
| ZLFT - 32m² | 6400 | 26 - 60 | 132 - 180 | 98 |
Core Applications
- Metallurgical Industry: Oxidation/Sulfation calcination of ores (zinc, copper, nickel)
- Chemical and Battery Materials: Roasting of lithium-ion battery cathode precursors
- Environmental Engineering: Thermal desorption of contaminated soil
- Advanced Materials: Synthesis of ceramic powders (Al2O3, SiC)
- Energy and Food: Biomass pyrolysis, coffee beans/cocoa nibs roasting
Key Benefits
- Energy Saving: Up to 30% reduction in fuel consumption compared to rotary kilns
- Precision Control: Bed temperature deviation of ±2 degrees Celsius
- Low Maintenance: No moving parts in the reaction zone
- Custom Solutions: Turnkey service from lab-scale testing to full plant engineering
Customization Options
Our fluidized bed roasters can be customized for:
- Size and capacity requirements
- Atmosphere control (nitrogen/oxygen/argon)
- Pressure settings (0.1 to 1.0 MPa)
- Heating methods (electric/gas/indirect fuel combustion)
Technical Support
Our comprehensive support includes:
- Installation and calibration assistance
- Operator training programs
- Equipment inspections and maintenance
- Remote troubleshooting
- Real-time data logging capability
