20t/H-40t/H Three Cylinder Dryer 20TPH Screw Conveyor Discharging
| Place of Origin | China |
| Brand Name | Zoomline |
Product Details
Model:
2.7*7.0
Insidedia:
2.7
Capacity(t/h):
20-40
Volume(m3):
40.5
Highlight:
40t/H Three Cylinder Dryer
,20t/H Three Cylinder Dryer
,20TPH Screw Conveyor Rotary Dryers
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Wooden box or film
Delivery Time
30-50 days
Payment Terms
T/T
Product Description

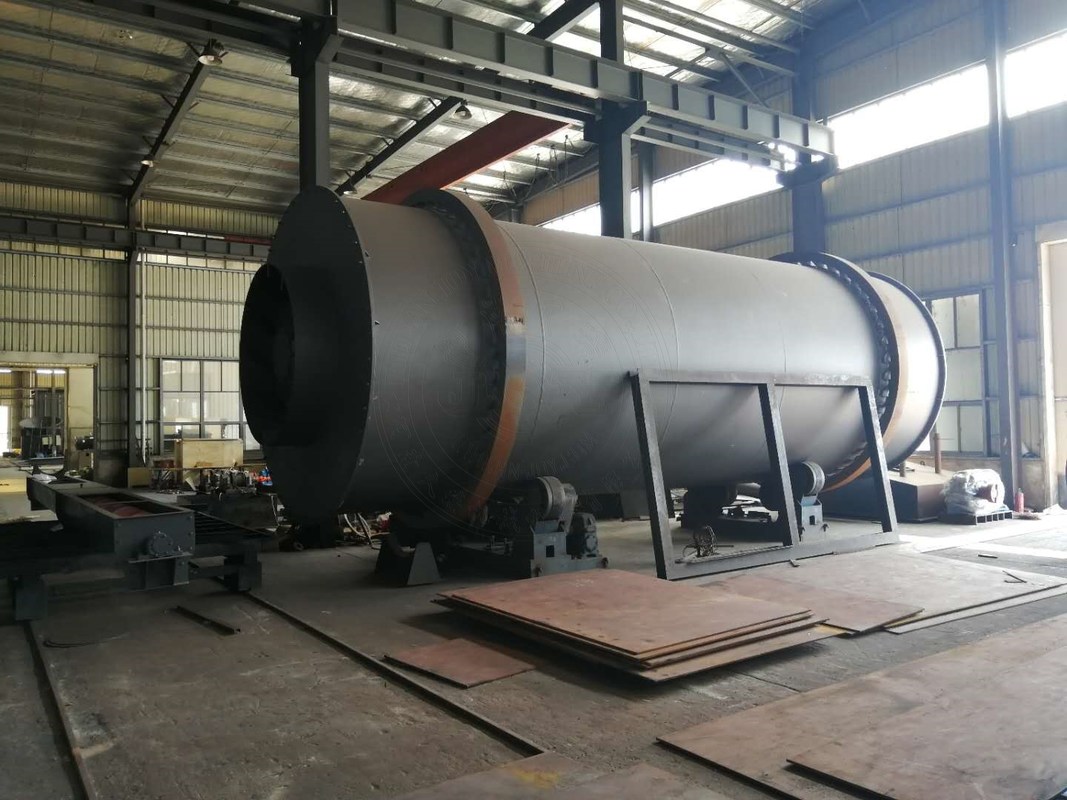

Industrial PLC Three Cylinder Dryer 20t/H Screw Conveyor Discharging
Product Overview
The Three Cylinder Dryer features an improved internal structure compared to single-cylinder models, enhancing wet material drying efficiency before entry and extending drying time within the machine. Combined with sealing, moisture-retention, and optimized supporting measures, it delivers 50-80% greater production capacity than conventional dryers.
Key Specifications
| Attribute | Value |
|---|---|
| Model | 2.7*7.0 |
| Inside Diameter | 2.7m |
| Capacity | 20-40 t/h |
| Volume | 40.5 m³ |
Performance Characteristics
- Evaporation intensity of 120-180kg/m³
- Standard coal consumption of only 6-8kg/t
- Advanced technology with optimized operating parameters
- Simple and reliable operation
Applications
This industrial dryer is suitable for processing various materials including slag, clay, coal, iron powder, ore powder, and construction materials like dry-mixed mortar, sand (both dry and wet), and materials for chemical engineering and casting applications.
Technical Parameters
| Model | Inside Dia. (m) | Length (m) | Volume (m³) | Rotate Speed (r/min) | Power (kw) | Capacity (t/h) | Reducer Type |
|---|---|---|---|---|---|---|---|
| Φ2.7×7.0 | 2.7 | 7.0 | 40.50 | 4-10 | 7.5×4 | 27-45 | XWD-6 |
| Φ3.0×7.0 | 3.0 | 7.0 | 49.46 | 4-10 | 7.5×4 | 30-45 | XWD-6 |
| Φ3.2×7.0 | 3.2 | 7.0 | 56.26 | 4-10 | 11×4 | 35-50 | XWD-6 |
| Φ3.6×8.0 | 3.6 | 8.0 | 81.38 | 4-10 | 15×4 | 55-75 | XWD-8 |
Note: Technical specifications are subject to change without prior notice.
