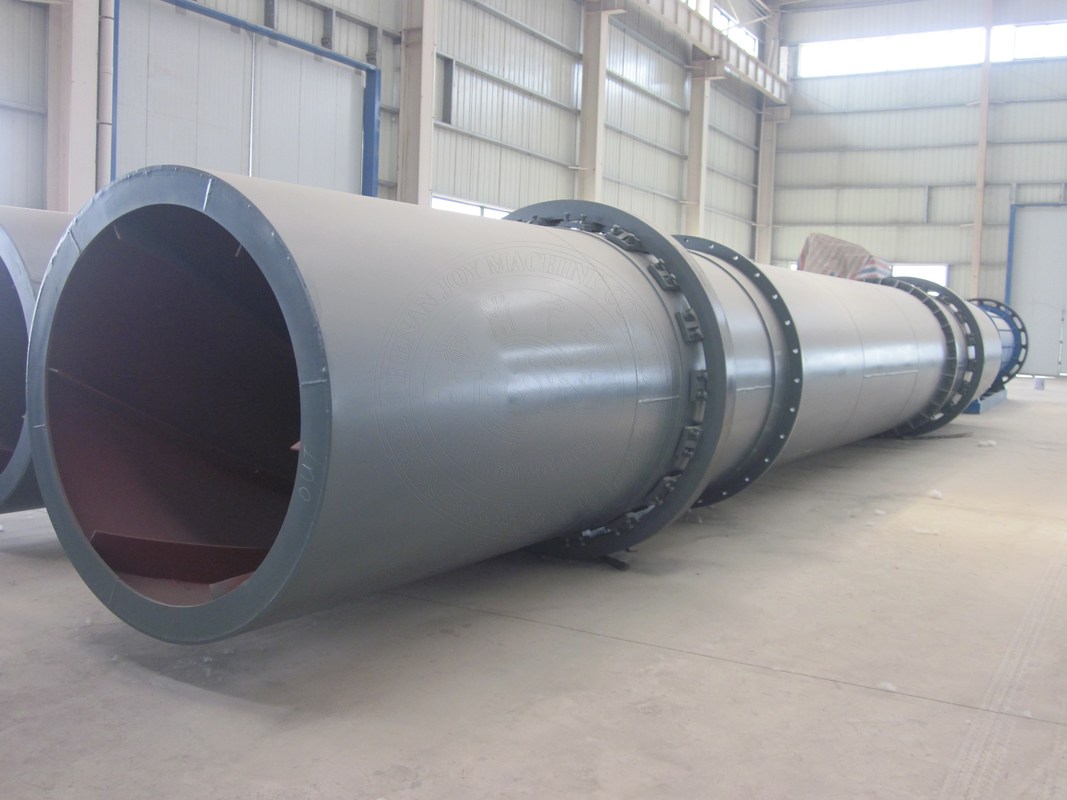

Stationary Rotary Sand Dryer Carbon Steel Rotary Dryer Industrial
| Place of Origin | China |
| Brand Name | Zoomline |
Product Details
Warranty:
1 Year
Safety Features:
Emergency Stop, Temperature Control, Etc.
Material:
Carbon Steel
Installation:
Stationary Or Portable
Size:
Customizable
Type:
Industrial Dryer
Heating Method:
Direct Or Indirect
Capacity:
Customizable
Highlight:
Stationary Rotary Sand Dryer
,Rotary Sand Dryer Carbon Steel
,Carbon Steel Rotary Dryer Industrial
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Wooden box or film
Delivery Time
30-50 days
Payment Terms
T/T
Supply Ability
Negotiable
Product Description
Manual Automatic Rotary Dryers And Control System Carbon Steel Rotary Sand Dryer
Our Rotary Dryers provide reliable industrial drying solutions with customizable capacity, adjustable speed, and manual or automatic control system options. These versatile dryers efficiently handle sand, minerals, coal, biomass, and other bulk materials in high-volume operations.
Key Advantages
- Customizable capacity for various production needs
- Adjustable drum speed for precise drying control
- Choice of manual or automatic control systems
- Robust carbon steel construction for durability
- Suitable for stationary or portable installation
Technical Specifications
| Attribute | Value |
|---|---|
| Material | Carbon Steel |
| Type | Industrial Dryer |
| Heating Method | Direct or Indirect |
| Capacity | Customizable |
| Size | Customizable |
| Installation | Stationary or Portable |
| Control System | Manual or Automatic |
| Safety Features | Emergency Stop, Temperature Control |
| Warranty | 1 Year |
Model Specifications
| Model | Inside Dia. (m) | Length (m) | Gradient (%) | Rotate Speed (r/min) | Power (kw) | Capacity (t/h) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| ZT - 1.2×6/8 | 1.2 | 6/8 | 5.0 | 5.8 | 5.5 | 8 - 12 | 9380/10200 |
| ZT - 1.5×12/15 | 1.5 | 12/15 | 5.0 | 4.8 | 15 | 12 - 16 | 16450/18240 |
| ZT - 1.8×12/14 | 1.8 | 12/14 | 5.0 | 4.5 | 18.5 | 18 - 20 | 20000/21000 |
| ZT - 2.2×12/14 | 2.2 | 12/14 | 5.0 | 4.3 | 22 | 22 - 28 | 30500/32000 |
| ZT - 2.4×14 | 2.4 | 14 | 4.0 | 3.78 | 30 | 30 - 35 | 46000 |
| ZT - 2.4×18 | 2.4 | 18 | 4.0 | 3.0 | 37 | 35 - 40 | 50000 |
| ZT - 2.4×22 | 2.4 | 22 | 3.0 | 3.0 | 45 | 38 - 42 | 54000 |
| ZT - 2.8×20 | 2.8 | 20 | 4.0 | 3.7 | 40 | 45 - 55 | 75000 |
| ZT - 3.0×22/25 | 3.0 | 22/25 | 4.0 | 3.2 | 75 | 58 - 70 | 80000/87000 |
| ZT - 3.2×25 | 3.2 | 25 | 4.0 | 3.0 | 110 | 75 - 90 | 116000 |
| ZT - 3.6×25 | 3.6 | 25 | 4.0 | 2.7 | 132 | 95 - 110 | 146000 |
Note: Any change of technical data shall not be advised additionally.
Applications
- Mining (drying minerals and ores)
- Agriculture (fertilizer processing)
- Construction (sand and aggregate drying)
- Biomass processing
- Chemical processing
Customization Options
- Brand Name: Rotary Dryers
- Place of Origin: Henan, China
- Installation: Stationary or Portable
- Size: Customizable
- Maintenance: Easy to Maintain
- Warranty: 1 Year
- Safety Features: Emergency Stop, Temperature Control
Support & Services
- Installation assistance
- Troubleshooting and maintenance
- Operator training sessions
- On-site technical support
We ensure prompt service to optimize your dryer's performance and longevity.
