Customizable Rotary Dryer Industrial Stainless Steel Rotary Dryer System
| Place of Origin | China |
| Brand Name | Zoomline |
Customizable Rotary Dryer Industrial
,Stainless Steel Rotary Dryer System
,Customizable Rotary Dryer System
The rotary drum dryer is a core industrial drying equipment designed for efficient and stable drying operations across multiple industries. Its precision engineering ensures materials reach optimal moisture content, providing a solid foundation for subsequent production processes.
- Type: Industrial Dryer
- Material: Stainless Steel
- Capacity: Customizable
- Control System: Manual or Automatic
- Safety Features: Emergency Stop, Temperature Control
- Maintenance: Easy To Maintain

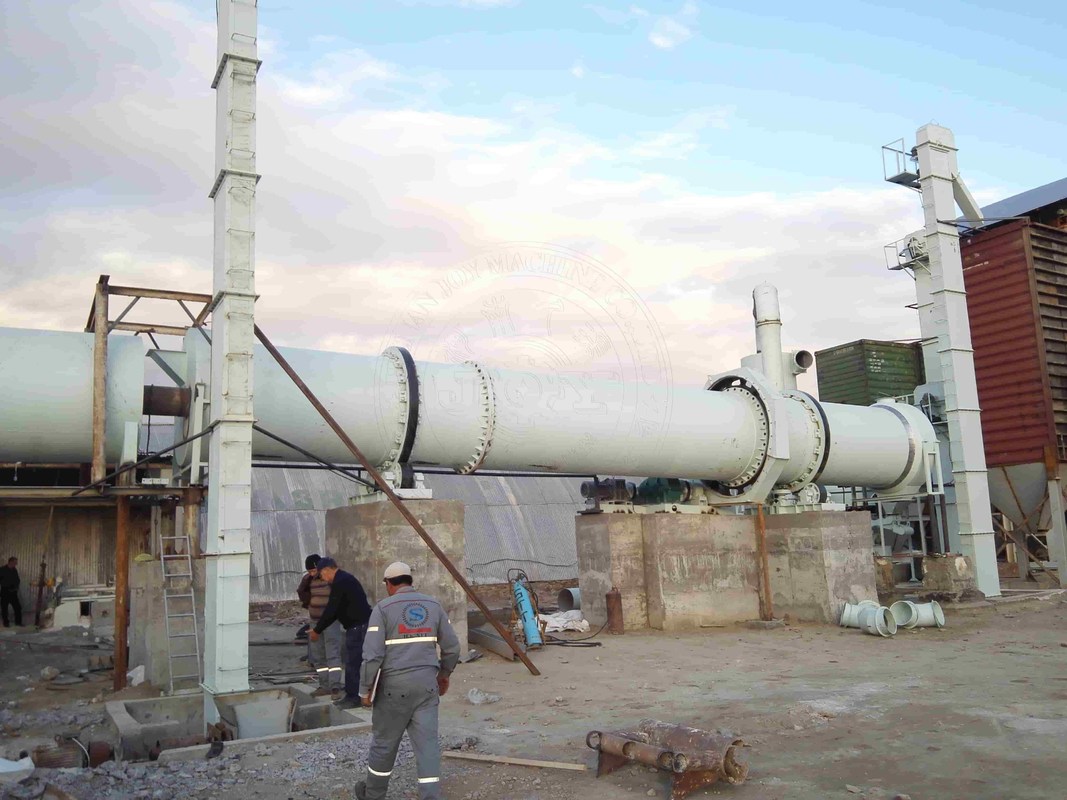

The rotary drum dryer consists of a rotating drum, driving mechanism, feeding/discharging devices, and heating system. Wet materials enter the inclined drum where they are continuously lifted and dropped while exposed to high-temperature air flow, ensuring thorough moisture evaporation and uniform drying.
- High-efficiency drying with full material-air contact for rapid moisture removal
- Uniform drying results through continuous material agitation
- Adaptable to various materials with adjustable temperature and rotation speed
- Energy-efficient design with optimized heat exchange system
- Environmentally friendly operation with dust collection system
- Multiple heating options: steam, electric, or gas
| Model | Inside Dia. (m) | Length (m) | Gradient (%) | Rotate Speed (r/min) | Power (kw) | Capacity (t/h) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| ZT - 1.2×6/8 | 1.2 | 6/8 | 5.0 | 5.8 | 5.5 | 8 - 12 | 9380/10200 |
| ZT - 1.5×12/15 | 1.5 | 12/15 | 5.0 | 4.8 | 15 | 12 - 16 | 16450/18240 |
| ZT - 1.8×12/14 | 1.8 | 12/14 | 5.0 | 4.5 | 18.5 | 18 - 20 | 20000/21000 |
| ZT - 2.2×12/14 | 2.2 | 12/14 | 5.0 | 4.3 | 22 | 22 - 28 | 30500/32000 |
| ZT - 2.4×14 | 2.4 | 14 | 4.0 | 3.78 | 30 | 30 - 35 | 46000 |
| ZT - 2.4×18 | 2.4 | 18 | 4.0 | 3.0 | 37 | 35 - 40 | 50000 |
| ZT - 2.4×22 | 2.4 | 22 | 3.0 | 3.0 | 45 | 38 - 42 | 54000 |
| ZT - 2.8×20 | 2.8 | 20 | 4.0 | 3.7 | 40 | 45 - 55 | 75000 |
| ZT - 3.0×22/25 | 3.0 | 22/25 | 4.0 | 3.2 | 75 | 58 - 70 | 80000/87000 |
| ZT - 3.2×25 | 3.2 | 25 | 4.0 | 3.0 | 110 | 75 - 90 | 116000 |
| ZT - 3.6×25 | 3.6 | 25 | 4.0 | 2.7 | 132 | 95 - 110 | 146000 |
We offer comprehensive customization options including tailored sizing, adjustable rotation speed configurations, material-specific drying solutions, choice of heating methods (electric or gas), and stationary or portable installation options.
Our engineering team works closely with clients to analyze material characteristics (composition, moisture content, particle size) and develop optimal drying solutions for each application.
