Pelletizing Rotary Kiln 28TPH - 40TPH Capacity Automated Lubrication
|

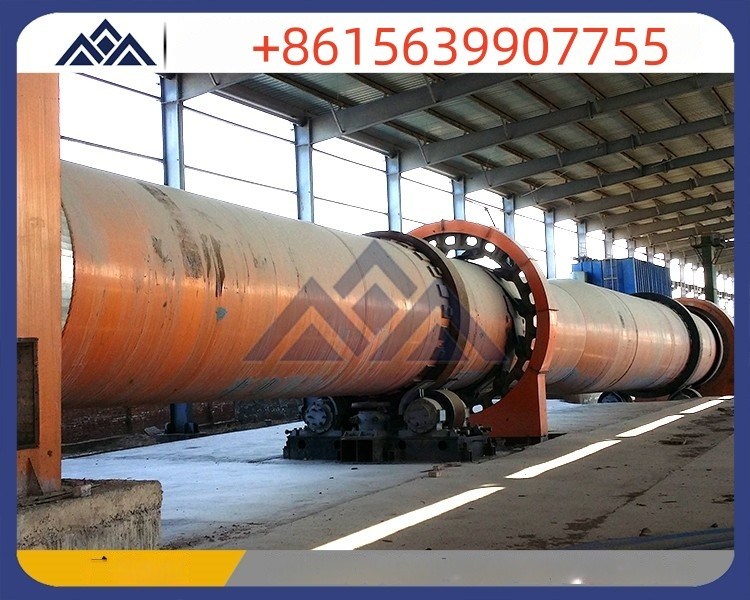

Pelletizing Rotary Kiln 28TPH - 40TPH Capacity Automated Lubrication
| Place of Origin | China |
| Brand Name | Zoomline |
| Model Number | YZ1225/1632/1636/1828/2245/2550/3529/3560 |
Product Details
Installation:
Provided
Model:
3.0×48
Temperature:
1000-1500℃
Rotating Speed:
0.5-2.47r/min
Highlight:
Pelletizing Rotary Kiln
,Rotary Kiln 28TPH
,Rotary Kiln 40TPH
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Wooden box or film
Delivery Time
30-50 days
Payment Terms
T/T
Supply Ability
Negotiable
Product Description
0.5 - 2.47r/Min Pelletizing Rotary Kiln with Refractory High Alumina Bricks
Product Overview
The pelletizing rotary kiln with built-in refractory high alumina bricks is a primary equipment in metallurgical pelletizing projects. Designed to work in conjunction with chain grates and ring coolers, it solidifies particles discharged at 850°C while performing high-temperature baking operations.
Key Specifications
| Installation | Provided |
| Model | 3.0×48 |
| Temperature Range | 1000-1500℃ |
| Rotating Speed | 0.5-2.47r/min |
Applications
- Magnetization roasting of lean iron ore in steel plants
- Oxidation roasting of chromium and nickel iron ores
- Roasting of high metallurgical ores in refractory plants
- Processing of clinker and aluminum hydroxide in aluminum plants
- Roasting of chromium ore sand and powder in chemical plants
Working Principle
The pellet roasting process occurs within the rotary kiln. Preheated pellets enter through the feed chute, rolling along the kiln's periphery while moving axially toward the kiln head. A specialized natural gas burner adjusts flame length and temperature, while 1100°C gas from the ring cooler provides supplementary heat.
Particles undergo heat radiation while rolling, achieving uniform baking at 1250-1300°C for 25-35 minutes.
Particles undergo heat radiation while rolling, achieving uniform baking at 1250-1300°C for 25-35 minutes.
Key Features
- Advanced Sealing: Combination scale and labyrinth seals minimize air leakage, enhancing efficiency and reducing energy consumption
- Hydraulic Drive: Imported hydraulic motor provides reliable power with stepless speed regulation and large starting torque
- Durable Gearing: High-strength split gears with superior casting quality and wear-resistant materials
- Smart Monitoring: Wireless temperature measurement with linear barrel scanning for real-time detection
- Automated Lubrication: Centralized intelligent lubrication system simplifies operation and maintenance
- Optimized Design: Finite element analysis and proprietary manufacturing techniques extend component lifespan
Technical Specifications
| Model | Diameter (mm) | Length (mm) | Slope (%) | Capacity (t/h) | Speed (r/min) | Motor Power (kW) | Weight (t) |
|---|---|---|---|---|---|---|---|
| YZ1225 | 1200 | 25000 | 4 | 3 | 0.35 - 3.55 | 15 | 34 |
| YZ1632 | 1600 | 32000 | 4 | 3.5 | 0.53 - 5.25 | 22 | 46.82 |
| YZ1636 | 1600 | 36000 | 4 | 1.2 - 1.9 | 0.26 - 2.61 | 22 | 51.023 |
| YZ1828 | 1800 | 28000 | 4 | 4 | 0.28 - 2.84 | 30 | 59.39 |
| YZ1845 | 1800 | 45000 | 4 | 4.5 | 0.28 - 2.84 | 30 | 80 |
| YZ1939 | 1900 | 39000 | 4 | 1.6 - 3.4 | 0.31 - 2.82 | 37 | 70.704 |
| YZ2044 | 2000 | 44000 | 3.5 | 2.4 - 4 | 0.22 - 2.26 | 37 | 97.135 |
| YZ2245 | 2200 | 45000 | 3.5 | 3.2 - 5.3 | 0.23 - 2.25 | 45 | 125.462 |
| YZ2550 | 2500 | 50000 | 3.5 | 6.2 - 7.4 | 0.68 - 1.45 | 55 | 179.606 |
| YZ2555 | 2500 | 55000 | 3.5 | 7.3 - 9.8 | 0.79 - 2.38 | 55 | 191.203 |
| YZ2820 | 2800 | 20000 | 4 | 15 - 18 | 0.8 - 1.45 | 75 | 186.373 |
| YZ3028 | 3000 | 28000 | 4 | 18 - 23 | 0.8 - 1.45 | 75 | 180.737 |
| YZ3060 | 3000 | 60000 | 3.5 | 16 - 20 | 0.49 - 2.41 | 90 | 272.510 |
| YZ3226 | 3200 | 26000 | 4 | 22 - 27 | 0.8 - 1.45 | 90 | 185.107 |
| YZ3255 | 3200 | 55000 | 3.5 | 17 - 23 | 0.1 - 1.52 | 75 | 271.673 |
| YZ3529 | 3500 | 29000 | 4 | 28 - 40 | 0.16 - 1.38 | 110 | 238.031 |
