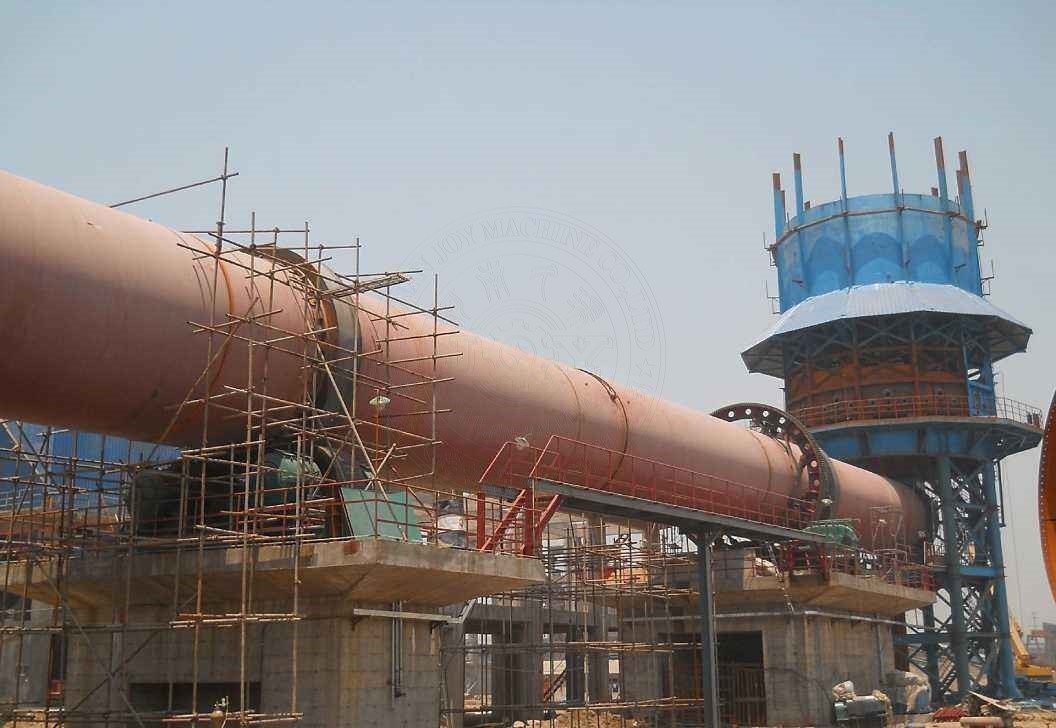

190t/H Titanium Dioxide Rotary Kiln Calcination Rotating Kiln
| Place of Origin | China |
| Brand Name | Zoomline |
Product Details
Feeding Equipment:
Screw Feeder
Motor Power:
15-550kw
Slope:
3.5-4%
Capacity:
3-190t/h
Highlight:
190t/H Titanium Dioxide Rotary Kiln
,Titanium Dioxide Rotary Kiln Calcination
,190t/H Calcination Rotating Kiln
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Wooden box or film
Delivery Time
30-50 days
Payment Terms
T/T
Supply Ability
Negotiable
Product Description
190t/H Titanium Dioxide Calcination Rotary Kiln with PLC Control
Our industrial-grade titanium dioxide rotary kiln is engineered for high-efficiency calcination processes, delivering superior performance in pigment production and material processing applications.
Key Specifications
Feeding Equipment: Screw Feeder
Motor Power: 15-550kW
Slope: 3.5-4%
Capacity: 3-190t/h
Titanium Dioxide Rotary Kiln Overview
Titanium dioxide is recognized as the world's premium white pigment, extensively used in coatings, plastics, paper, printing inks, chemical fibers, rubber, cosmetics, and particularly in ceramic manufacturing. Our proprietary rotary kiln design delivers high purity output with uniform particle size distribution, exceptional refractive index, and outstanding high-temperature resistance.
Design & Structure
The kiln features a robust steel cylinder with specialized refractory lining, positioned at an optimal angle (3-5%). Supported by precision wheel belts and gear mechanisms, it's powered by a motor through a reducer system. The engineered structure ensures efficient material processing from kiln tail to head.
Key Performance Features
- Chemical Reactor Function: Enables staged physical/chemical reactions with precise temperature control for optimal mineral formation
- Waste Treatment Capability: High-temperature processing degrades industrial waste while immobilizing heavy metals
- Heat Exchange System: Uniform temperature field meets all clinker formation requirements
- Material Conveyance: Inclined design ensures continuous material movement through the kiln
- Combustion Efficiency: Optimized combustion space ensures complete fuel burning and maximum heat transfer
Technical Specifications
| Model | Barrel Diameter (mm) | Barrel Length (mm) | Slope (%) | Capacity (t/h) | Speed | Motor Power (kW) | Weight (t) |
|---|---|---|---|---|---|---|---|
| YZ1225 | 1200 | 25000 | 4 | 3 | 0.35 - 3.55 | 15 | 34 |
| YZ1632 | 1600 | 32000 | 4 | 3.5 | 0.53 - 5.25 | 22 | 46.82 |
| YZ1636 | 1600 | 36000 | 4 | 1.2 - 1.9 | 0.26 - 2.61 | 22 | 51.023 |
| YZ1828 | 1800 | 28000 | 4 | 4 | 0.28 - 2.84 | 30 | 59.39 |
| YZ1845 | 1800 | 45000 | 4 | 4.5 | 0.28 - 2.84 | 30 | 80 |
| YZ1939 | 1900 | 39000 | 4 | 1.6 - 3.4 | 0.31 - 2.82 | 37 | 70.704 |
| YZ2044 | 2000 | 44000 | 3.5 | 2.4 - 4 | 0.22 - 2.26 | 37 | 97.135 |
| YZ2245 | 2200 | 45000 | 3.5 | 3.2 - 5.3 | 0.23 - 2.25 | 45 | 125.462 |
| YZ2550 | 2500 | 50000 | 3.5 | 6.2 - 7.4 | 0.68 - 1.45 | 55 | 179.606 |
| YZ2555 | 2500 | 55000 | 3.5 | 7.3 - 9.8 | 0.79 - 2.38 | 55 | 191.203 |
