Boiling Fluidized Bed Roasting 5m2 16m2 32m2 Custom Circulating Fluid Bed
| Place of Origin | China |
| Brand Name | Zoomline |
| Certification | JY001-2018Q0023 |
| Model Number | ZLFT-0.6㎡/1.1㎡/3㎡/5㎡/16㎡/32㎡ |
Product Details
Weight:
3.5-98t
Capacity:
0.1-60t/h
Power:
5.5-180kw
Diameter:
900-6400mm
Highlight:
Fluidized Bed Roasting
,Fluidized Bed Roasting 5m2
,16m2 circulating fluid bed
Payment & Shipping Terms
Minimum Order Quantity
a set
Price
Based on the actual circumstances
Packaging Details
Packing in wooden cases or plastic films
Delivery Time
20-50work days
Payment Terms
T/T,
Supply Ability
Two to five sets per month.
Product Description
Boiling Fluidized Bed Roasting 5m² 16m² 32m² Custom Circulating Fluid Bed
The ZLFT series boiling roaster (0.6㎡ to 32㎡) provides industrial-grade fluidized bed roasting solutions with customizable configurations for various applications. This solid fluidized-bed roaster utilizes controlled airflow to create intense roasting reactions on powdered materials, maintaining continuous motion that resembles the boiling state of a viscous liquid.
Key Specifications
Weight: 3.5-98t
Capacity: 0.1-60t/h
Power: 5.5-180kw
Diameter: 900-6400mm
Capacity: 0.1-60t/h
Power: 5.5-180kw
Diameter: 900-6400mm
Furnace Types
- Straight-cylinder roasters: Designed for roasting non-ferrous metal concentrates
- Roasters with enlarged upper parts: Originally developed for crushing ore lumps in sulfuric acid production, now also effective for various floatation ores and sulfur-rich concentrates
Key Advantages
- High production intensity through optimal air-material contact and intense relative movement
- Exceptional heat transfer efficiency with material surface area reaching 3280-49200 m² per cubic meter
- Versatile raw material compatibility, particularly effective for fine-grained materials
- Simple operation with easy mechanization and automation integration
Technical Specifications
| Model | Diameter (mm) | Capacity (t/h) | Power (kw) | Weight (t) |
|---|---|---|---|---|
| ZLFT-0.6m² | 900 | 0.1-1.2 | 5.5-7.5 | 3.5 |
| ZLFT-1.1m² | 1200 | 0.3-2.7 | 11-15 | 5.9 |
| ZLFT-3m² | 2000 | 1.1-3.5 | 22-30 | 17 |
| ZLFT-5m² | 2600 | 3.8-7.9 | 30-45 | 26 |
| ZLFT-16m² | 4600 | 15-30 | 90-110 | 55 |
| ZLFT-32m² | 6400 | 26-60 | 132-180 | 98 |

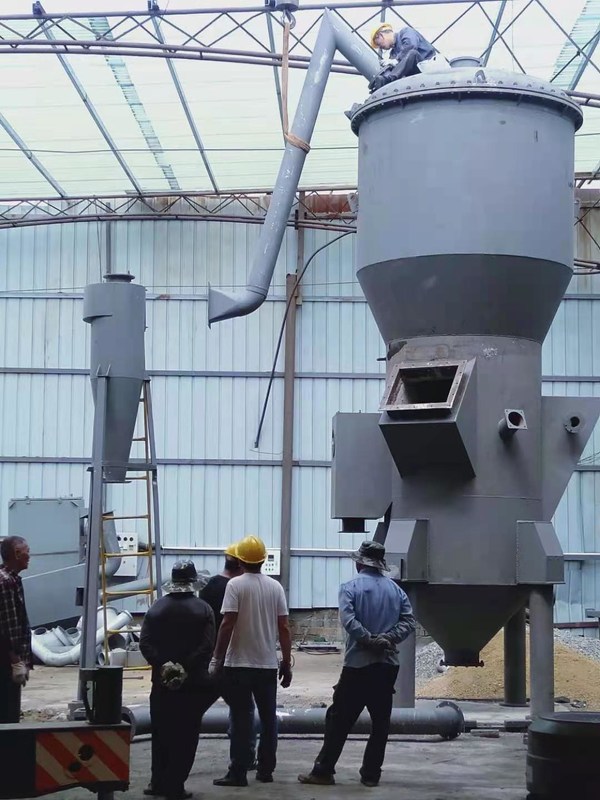

Product Images
