Industrial Waste Disposal Incinerator 800 - 1200 Degree Solid Waste Incinerator
|
Industrial Waste Disposal Incinerator 800 - 1200 Degree Solid Waste Incinerator
| Place of Origin | China |
| Brand Name | Zoomline |
Product Details
Power Supply:
3-phase, 380V, 50Hz
Temperature Range:
800-1200 Degrees Celsius
Safety Features:
Temperature And Pressure Monitoring, Emergency Shutdown System
Fuel Type:
Natural Gas
Operation Mode:
Continuous
Control System:
PLC
Air Pollution Control System:
Cyclone Separator
Material Of Construction:
High Temperature Resistant Steel
Emission Standards:
Compliant With Local Regulations
Ash Removal System:
Mechanical Rake
Waste Type:
Solid, Liquid, And Gaseous Waste
Highlight:
Industrial Waste Disposal Incinerator
,800 Degree Solid Waste Incinerator
,1200 Degree Solid Waste Incinerator
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Wooden box or film
Delivery Time
30-50 days
Payment Terms
T/T
Product Description
3 Phase Industrial Incinerator 800-1200°C Solid Waste Incinerator
Our high-efficiency, environmentally friendly waste incinerator provides an ideal solution for industrial solid waste treatment with outstanding combustion efficiency and environmental performance.
Key Specifications
| Attribute | Value |
|---|---|
| Power Supply | 3-phase, 380V, 50Hz |
| Temperature Range | 800-1200°C |
| Safety Features | Temperature and pressure monitoring, emergency shutdown system |
| Fuel Type | Natural Gas |
| Operation Mode | Continuous |
| Control System | PLC |
| Air Pollution Control System | Cyclone Separator |
| Material Of Construction | High temperature resistant steel |
| Emission Standards | Compliant with local regulations |
| Ash Removal System | Mechanical Rake |
| Waste Type | Solid, liquid, and gaseous waste |
Advanced Waste Incineration Technology
The incinerator features a unique four-stage combustion process:
- Primary incineration for initial waste decomposition
- Circumferential air mixing combustion for optimal waste-air contact
- Secondary pyrolysis gasification to enhance combustion efficiency
- Burnout treatment ensuring complete waste combustion
Key Advantages
- Extremely high incineration efficiency (≥99%) with complete waste volume reduction
- Compact design with small footprint for easy installation
- Fully enclosed operation prevents secondary pollution, ideal for infectious waste
- Available in fuel-oil-fired and gas-fired configurations
- Wide application in hospitals, hotels, commercial institutions, and public facilities
Technical Performance
When treating domestic waste, the incinerator maintains:
- Stable temperature ≥850°C
- Flue gas residence time ≥2.0 seconds
- Incineration efficiency ≥99%
- Destruction and removal rate ≥99%
- Heat reduction rate of residues ≥5%
All performance indicators meet or exceed national standards for high-efficiency, harmless waste treatment.
Model Specifications
| Specification | ZJS-30 | ZJS-100 | ZJS-200 | ZJS-300 | ZJS-500 |
|---|---|---|---|---|---|
| Handling Capacity (kg/times) | 30-80 | 100-150 | 200-300 | 300-400 | 400-550 |
| Size of Feeding Port (mm) | 480×600 | 760×960 | 900×1100 | 1080×1280 | 1300×1400 |
| Blower Power (kw) | 0.15 | 0.25 | 0.5 | 0.75 | 1.1 |
| Primary Burner | Power: 0.17KW Oil: 4-6kg/h |
Power: 0.17KW Oil: 4.5-10kg/h |
Power: 0.17KW Oil: 6.5-14kg/h |
Power: 0.32kw Oil: 6.5-14kg/h |
Power: 0.32kw Oil: 6.5-14kg/h |
| Weight (t) | 3.1 | 4.5 | 8.6 | 13.7 | 18.9 |
| Chimney (mm) | 273 | 273 | - | - | - |
Installation & Operation
We provide comprehensive installation instructions covering:
- Main equipment hoisting
- Flue gas purification chamber and chimney installation
- Fan and burner setup
- Oil pipeline configuration
Clear operational steps ensure smooth installation and quick commissioning.

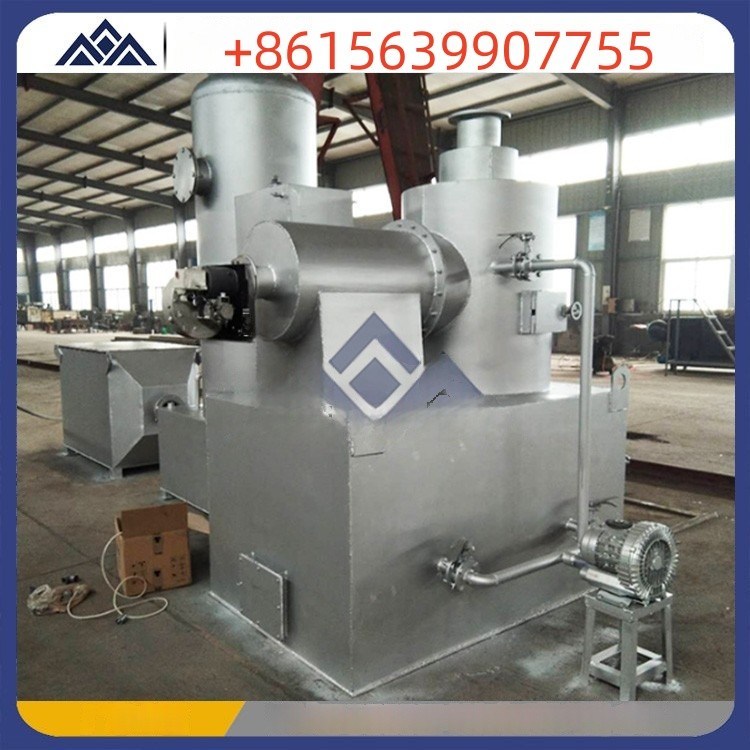

Industrial solid waste incinerator in operation
Close-up view of high-temperature waste incinerator
Environmental Commitment
Choosing our waste incinerator represents a commitment to efficient, environmentally friendly, and safe waste treatment, contributing to sustainable development and environmental protection.
