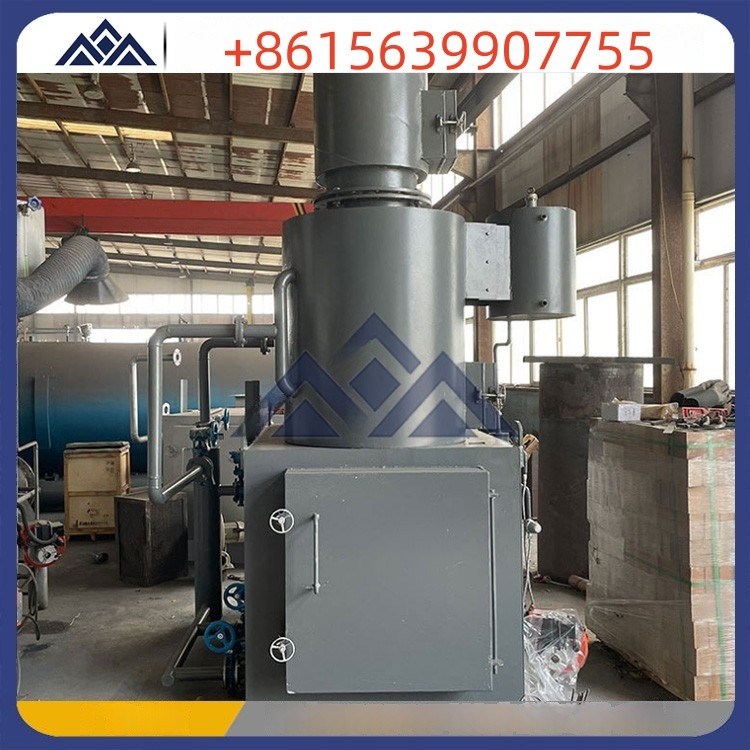

Smokeless Waste Incinerator 100kg 200kg 300kg Cyclone Separator
|
Smokeless Waste Incinerator 100kg 200kg 300kg Cyclone Separator
| Place of Origin | China |
| Brand Name | Zoomline |
Product Details
Power Source:
Electric
Emission Control:
Cyclone Separator
Temperature Range:
500-1000°C
Voltage:
220V/380v
Control System:
PLC
Highlight:
Smokeless Waste Incinerator 100kg
,Smokeless Waste Incinerator 200kg
,300kg Cyclone Separator Waste Incinerator
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Wooden box or film
Delivery Time
30-50 days
Payment Terms
T/T
Product Description
Waste Disposal Smokeless Incinerator (100kg, 200kg, 300kg)
Our advanced waste incinerator provides an ideal solution for modern waste treatment needs with its innovative technology and excellent performance.
Key Specifications
| Power Source | Electric |
| Emission Control | Cyclone Separator |
| Temperature Range | 500-1000°C |
| Voltage | 220V/380V |
| Control System | PLC |
Advanced Combustion Technology
- Primary Incineration: Initial waste decomposition
- Circumferential Air Mixing: Ensures complete waste-air contact
- Secondary Pyrolysis Gasification: Enhances combustion efficiency
- Burnout Treatment: Guarantees complete waste combustion
Key Advantages
- Extremely high incineration efficiency (≥99%)
- Compact design with small footprint
- Fully enclosed operation prevents secondary pollution
- Available in fuel-oil-fired and gas-fired options
- Wide application in hospitals, hotels, commercial institutions, and public facilities
Technical Performance
When treating domestic waste:
- Stable temperature ≥850°C
- Flue gas residence time ≥2.0 seconds
- Incineration efficiency ≥99%
- Destruction and removal rate ≥99%
- Heat reduction rate of residues ≥5%
Model Specifications
| Specification | ZJS-30 | ZJS-100 | ZJS-200 | ZJS-300 | ZJS-500 |
|---|---|---|---|---|---|
| Handling Capacity (kg/times) | 30-80 | 100-150 | 200-300 | 300-400 | 400-550 |
| Size of Feeding Port (mm) | 480×600 | 760×960 | 900×1100 | 1080×1280 | 1300×1400 |
| Blower Power (kw) | 0.15 | 0.25 | 0.5 | 0.75 | 1.1 |
| Primary Burner | Power: 0.17KW Oil: 4-6kg/h |
Power: 0.17KW Oil: 4.5-10kg/h |
Power: 0.17KW Oil: 6.5-14kg/h |
Power: 0.32KW Oil: 6.5-14kg/h |
Power: 0.32KW Oil: 6.5-14kg/h |
| Weight (t) | 3.1 | 4.5 | 8.6 | 13.7 | 18.9 |
| Chimney (mm) | 273 | 273 | - | - | - |
Choosing our waste incinerator means selecting an efficient, environmentally friendly, and safe waste treatment solution that contributes to environmental protection and sustainable development.
