10-650T/Hr Mining Screening Equipment 2 Layers Mining Vibrating Screens
|
10-650T/Hr Mining Screening Equipment 2 Layers Mining Vibrating Screens
| Place of Origin | China |
| Brand Name | Zoomline |
Product Details
Process Capacity:
10-25T/H
Attributes:
Mining Flotation Machines
Advantage:
High Efficiency
Color:
According To Customer′s Requirement
Attribute:
Mining Machine
Capacity:
10-1000 Tons Per Hour
Origin:
China
Screening Layers:
1-5 Layers
Highlight:
650T/Hr Mining Screening Equipment
,10T/Hr Mining Screening Equipment
,2 Layers Mining Vibrating Screens
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Wooden box or film
Delivery Time
30-50 days
Payment Terms
T/T
Supply Ability
Negotiable
Product Description
10 - 650Tons/Hr Mining Screening Equipment 2Layers Mining Vibrating Screens
Product Overview

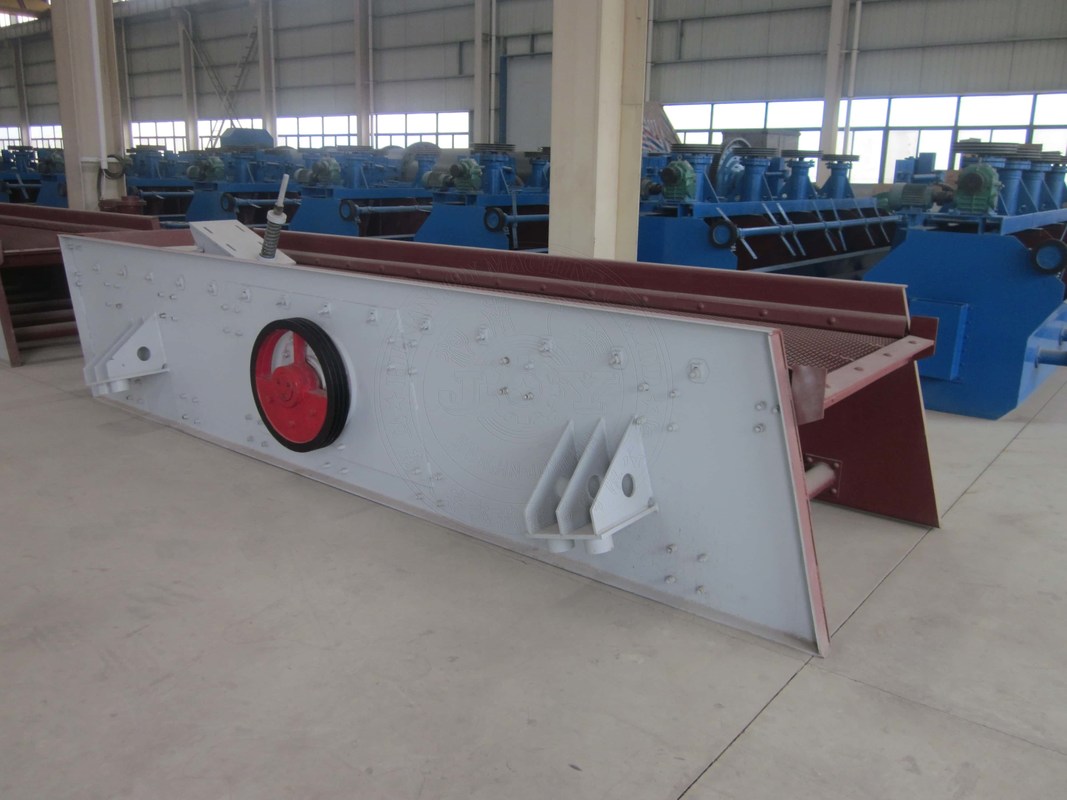

The YZS Circular Vibrating Screen offers 10-650 tons per hour capacity for mining screening operations. This high-efficiency equipment features multiple layers and circular motion operation, with adjustable amplitude through partial blocks for optimal material flow.
Key Specifications
Process Capacity: 10-25T/H
Type: Mining Flotation Machines
Capacity Range: 10-1000 Tons Per Hour
Screening Layers: 1-5 Layers
Color: Customizable
Origin: China
Key Features
- Reliable heavy-duty structure for continuous operation
- Powerful vibration force for efficient screening
- Low noise operation for improved work environment
- Durable construction with extended service life
- Easy maintenance and safe operation
- Wide application in mining, construction, energy, and chemical industries
Technical Specifications
| Model | Layers | Screen Hole (mm) | Max Feed (mm) | Capacity (t/h) | Frequency (r/min) | Amplitude (mm) | Power (kW) | Angle (°) | Screen Size (mm) | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2YK1225 | 2 | 4-50 | 400 | 8-60 | 800-970 | 8 | 5.5 | 20 | 1200×2500 | 3500 | 3040×1840×800 |
| 3YK1225 | 3 | 4-50 | 400 | 10-70 | 800-970 | 8 | 5.5 | 20 | 1200×2500 | 3850 | 3040×1840×1200 |
| 2YK1230 | 2 | 4-50 | 400 | 12-78 | 800-970 | 8 | 7.5 | 20 | 1200×3000 | 4200 | 3390×1900×800 |
| 3YK1230 | 3 | 4-50 | 400 | 13-80 | 800-970 | 8 | 7.5 | 20 | 1200×3000 | 4600 | 3537×1900×1200 |
| 2YK1237 | 2 | 4-50 | 400 | 15-86 | 800-970 | 8 | 7.5 | 20 | 1200×3700 | 4600 | 4090×1900×800 |
| 3YK1237 | 3 | 4-50 | 400 | 16-90 | 800-970 | 8 | 7.5 | 20 | 1200×3700 | 5200 | 4400×1950×1200 |
| 2YK1535 | 2 | 5-50 | 400 | 20-125 | 800-970 | 8 | 11 | 20 | 1500×3500 | 5890 | 4552×2250×900 |
| 3YK1535 | 3 | 5-50 | 400 | 21-125 | 800-970 | 8 | 11 | 20 | 1500×3500 | 6700 | 4552×2250×1600 |
| 2YK1545 | 2 | 5-50 | 400 | 22-150 | 800-970 | 8 | 15 | 20 | 1500×4500 | 6330 | 5400×2250×1600 |
| 3YK1545 | 3 | 5-50 | 400 | 22-150 | 800-970 | 8 | 15 | 20 | 1500×4500 | 6800 | 5400×2250×1700 |
