10-1000T Per Hour Vibratory Screening Equipment Customized Industrial Vibrating Screen
|
10-1000T Per Hour Vibratory Screening Equipment Customized Industrial Vibrating Screen
| Place of Origin | China |
| Brand Name | Zoomline |
Product Details
Process Capacity:
10-25T/H
Capacity:
10-1000 Tons Per Hour
Quality:
High
Attributes:
Mining Flotation Machines
Mesh Size:
More(customized)
Highlight:
1000T Per Hour Vibratory Screening Equipment
,10T Per Hour Vibratory Screening Equipment
,Customized Industrial Vibrating Screen
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Wooden box or film
Delivery Time
30-50 days
Payment Terms
T/T
Supply Ability
Negotiable
Product Description

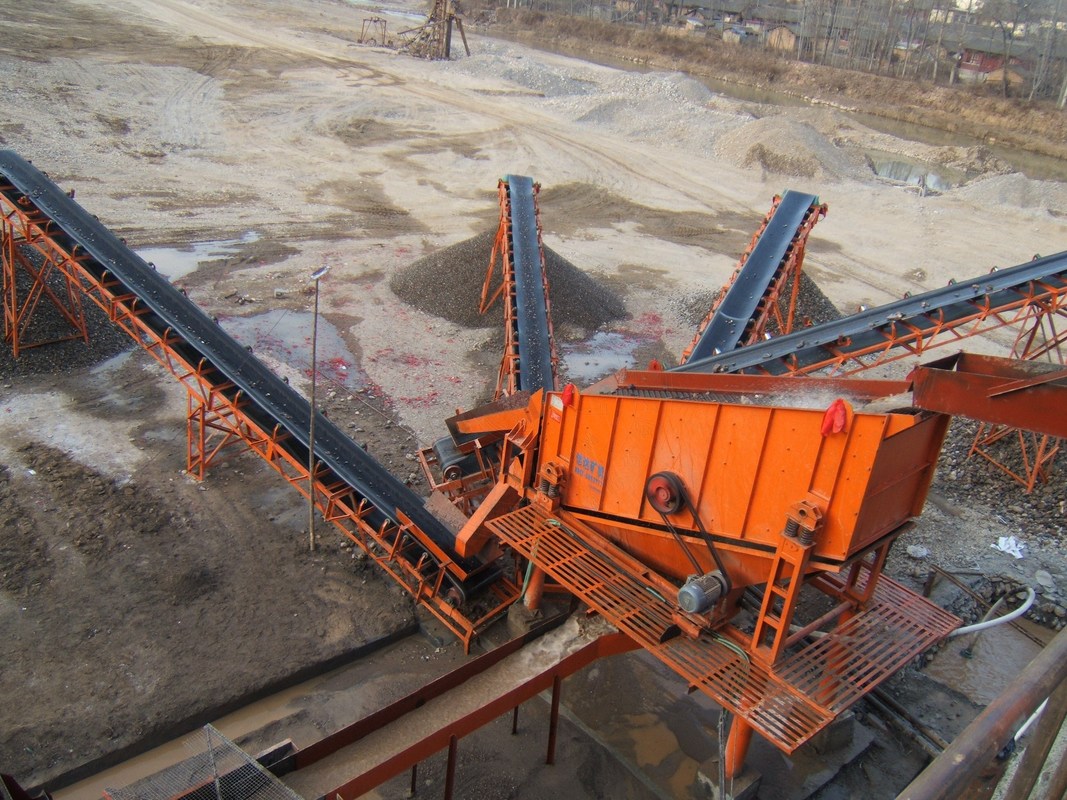

Wear Resistant Mining Screening Equipment Impact Resistant Construction Sand Round Vibrating Screen
The wear-resistant and impact-resistant construction sand and gravel circular vibrating screen is a highly efficient screening equipment widely used in mining, building materials, chemical industry, food processing, and other industries.
Product Specifications
Process Capacity: 10-25T/H
Capacity: 10-1000 Tons Per Hour
Quality: High
Attributes: Mining Flotation Machines
Mesh Size: Customizable
Structural Design
- Composed of screen box, screen mesh, vibrator, and vibration damping spring device
- Screen box made of high-strength steel plate for durability
- Vibrator installed on side plate with eccentric block to generate exciting force
- Vibration damping spring supports screen box to reduce foundation impact
Working Principle
The motor drives the vibrator's main shaft via V-belt, creating centrifugal inertia force that produces a circular motion trajectory. Materials entering the screen surface are separated by size, with smaller particles passing through and larger particles remaining for further screening before discharge.
Performance Advantages
- High screening efficiency: Unique structure enables rapid material layering and screening with large processing capacity
- Precision accuracy: Customizable screens effectively separate materials by particle size
- Stable operation: Vibration motor provides strong, reliable excitation force with low failure rate
- Easy maintenance: Simple structure with replaceable screens reduces maintenance costs
- Wide application: Suitable for screening various granular and powdery materials including limestone, quartz sand, coal, and grain
Technical Specifications
| Model | Screen Layers | Mesh Size (mm) | Max Feed Size (mm) | Capacity (t/h) | Vibration Frequency (r/min) | Double Amplitude (mm) | Motor Power (kW) | Screen Angle (°) | Screen Dimensions (L×W mm) | Weight (kg) | Overall Dimensions (L×W×H mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2YK1225 | 2 | 4 - 50 | 400 | 8 - 60 | 800 - 970 | 8 | 5.5 | 20 | 1200×2500 | 3500 | 3040×1840×800 |
| 3YK1225 | 3 | 4 - 50 | 400 | 10 - 70 | 800 - 970 | 8 | 5.5 | 20 | 1200×2500 | 3650 | 3040×1840×1200 |
| 2YK1230 | 2 | 4 - 50 | 400 | 12 - 78 | 800 - 970 | 8 | 7.5 | 20 | 1200×3000 | 4200 | 3390×1900×800 |
| 3YK1230 | 3 | 4 - 50 | 400 | 13 - 80 | 800 - 970 | 8 | 7.5 | 20 | 1200×3000 | 4600 | 3537×1900×1200 |
| 2YK1237 | 2 | 4 - 50 | 400 | 15 - 86 | 800 - 970 | 8 | 7.5 | 20 | 1200×3700 | 4600 | 4090×1900×800 |
| 3YK1237 | 3 | 4 - 50 | 400 | 16 - 90 | 800 - 970 | 8 | 7.5 | 20 | 1200×3700 | 4400 | 4090×1900×1200 |
| 2YK1535 | 2 | 5 - 50 | 400 | 20 - 125 | 800 - 970 | 8 | 11 | 20 | 1500×3500 | 5890 | 4552×2250×900 |
| 3YK1535 | 3 | 5 - 50 | 400 | 21 - 125 | 800 - 970 | 8 | 11 | 20 | 1500×3500 | 6700 | 4552×2250×1600 |
| 2YK1545 | 2 | 5 - 50 | 400 | 22 - 150 | 800 - 970 | 8 | 15 | 20 | 1500×4500 | 6330 | 5400×2250×1600 |
| 3YK1545 | 3 | 5 - 50 | 400 | 22 - 150 | 800 - 970 | 8 | 15 | 20 | 1500×4500 | 6800 | 5400×2250×1700 |
| 2YK1548 | 2 | 5 - 50 | 400 | 22.5 - 162 | 800 - 970 | 8 | 15 | 20 | 1500×4800 | 6980 | 5400×2250×1860 |
| 3YK1548 | 3 | 5 - 50 | 400 | 22.5 - 162 | 800 - 970 | 8 | 15 | 20 | 1500×4800 | 7600 | 5752×2200×1600 |
| 2YK1848 | 2 | 5 - 80 | 400 | 25 - 206 | 750 - 970 | 8 | 11 | 15 | 1500×4800 | N/A | N/A |
