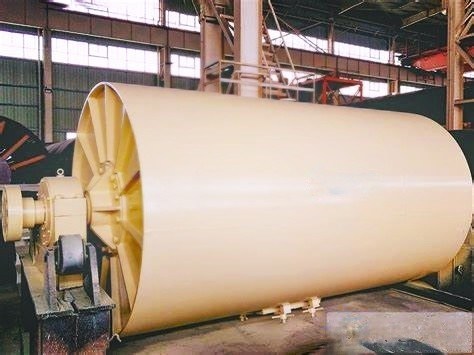

Mixing 20mm Ceramic Ball Mill Equipment 2.2Kw-2500Kw Power
  • Mixing 20mm Ceramic Ball Mill Equipment 2.2Kw-2500Kw Power

Mixing 20mm Ceramic Ball Mill Equipment 2.2Kw-2500Kw Power

Place of Origin China
Brand Name Zoomline
Product Details
Condition:
New
Feeding Size:
≤20mm
Color:
White
Power:
2.2-2500kw
Highlight:

Mixing 20mm Ceramic Ball Mill

,

20mm Ceramic Ball Mill Equipment

,

2500Kw Ball Mill Equipment

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Wooden box or film
Delivery Time
30-50 days
Payment Terms
T/T
Supply Ability
Negotiable
Product Description
20mm Ceramic Ball Mill Equipment with Alumina Grinding Balls
Product Overview
Our ceramic ball mill equipment is designed for efficient mixing and grinding of materials with 20mm alumina grinding balls. Ideal for various industrial applications requiring precise material processing.
Key Attributes
Condition New
Feeding Size ≤20mm
Color White
Power Range 2.2-2500kW
Applications
  • Cement and silicate product manufacturing
  • New building materials production
  • Refractory materials processing
  • Fertilizer production
  • Black and non-ferrous metal beneficiation
  • Glass and ceramics industries
Mixing 20mm Ceramic Ball Mill Equipment 2.2Kw-2500Kw Power 0
Operational Features
The ceramic ball mill offers both dry and wet grinding capabilities with fineness controlled by grinding time. Features auto-coupling decompression startup to reduce current surge. Available in integral or independent structural designs with belt or gear drive options.
Working Principle
The motor drives the cylinder rotation through reduction gear. Materials and grinding balls are lifted by liners through friction and centrifugal force, then cascade down for continuous impact grinding. Ground materials discharge continuously through the output system, enabling 24/7 operation.
Technical Specifications
Model Loading Amount (kg) Rotary Speed (r/min) Power (kW) Weight (kg)
φ910×1120 200 35 2.2 1910
φ1200×1420 500 31 4 2500
φ1400×1800 1000 27 7.5 3000
φ1800×2100 1500 23 11 4500
φ2200×2200 2500 20 18.5 6500
φ2200×2600 3000 20 22 7000
φ2500×3000 5000 16 37 13000
φ2800×3400 8000 14 45 19500
φ3000×5000 15000 13 75 28000
φ3100×5000 18000 12 75 28500
φ3200×5800 20000 12 90 29600
φ3500×6000 30000 12 132 31000
φ3500×7000 40000 10 160 37000
φ4000×8000 60000 9 250 55000
