High Temperature Pyrolysis Solid Waste Incinerator Natural Gas Incinerator
|
High Temperature Pyrolysis Solid Waste Incinerator Natural Gas Incinerator
| Place of Origin | China |
| Brand Name | Zoomline |
Product Details
Operating Mode:
Batch Or Continuous
Installation Requirements:
Permit From Local Authorities And Compliance With Emission Regulations
Energy Recovery System:
Steam Or Electricity Generation
Fuel Type:
Natural Gas, Diesel, Or Solid Waste
Highlight:
High Temperature Pyrolysis Solid Waste Incinerator
,Pyrolysis Natural Gas Incinerator
,High Temperature Natural Gas Incinerator
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Wooden box or film
Delivery Time
30-50 days
Payment Terms
T/T
Supply Ability
Negotiable
Product Description

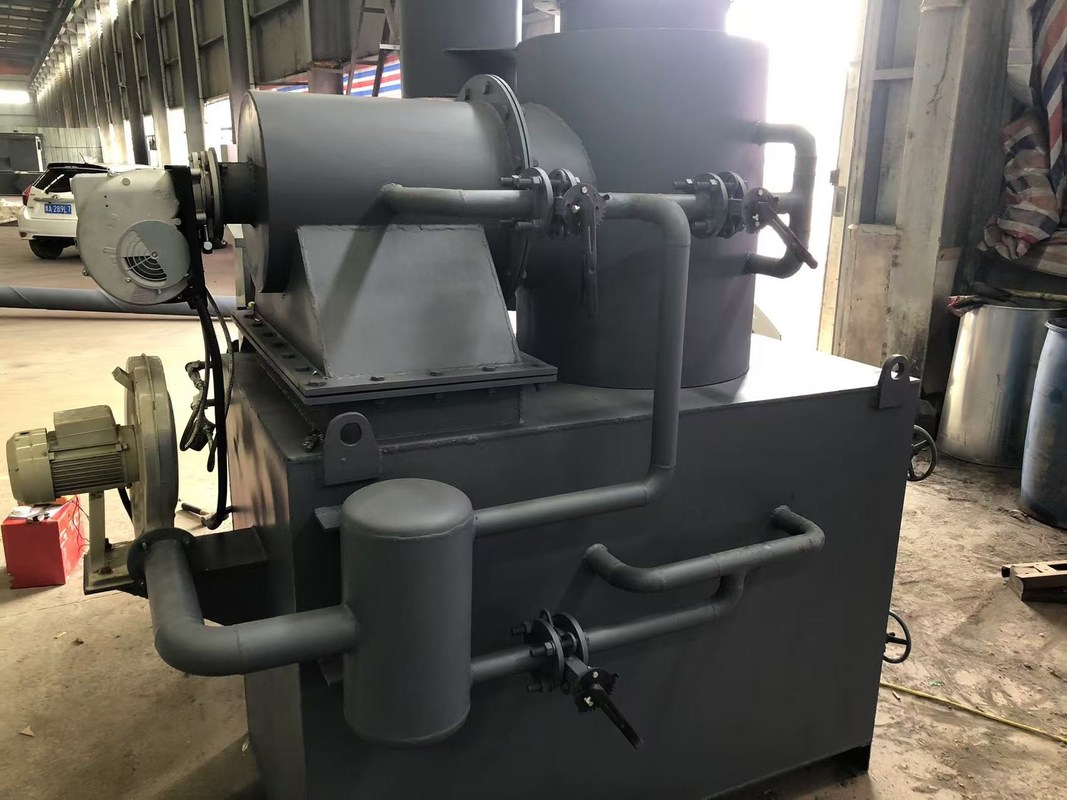

Outdoor Waste Incinerators High Temperature Pyrolysis Heavy Duty Incinerator
Our waste incinerator offers an ideal solution to waste problems with its excellent performance and advanced technology. The ZLS-30, 100, 200, 300, and 500 models feature a unique combustion method of "primary incineration + circumferential air mixing combustion + secondary pyrolysis gasification + burnout treatment".
| Operating Mode | Batch Or Continuous |
|---|---|
| Installation Requirements | Permit From Local Authorities And Compliance With Emission Regulations |
| Energy Recovery System | Steam Or Electricity Generation |
| Fuel Type | Natural Gas, Diesel, Or Solid Waste |
Key Features
- Extremely high incineration efficiency with complete waste combustion
- Compact size with small footprint for easy installation
- Suitable for hospitals, hotels, stations, commercial institutions, and public facilities
- Fully-enclosed operation prevents secondary pollution
- Available in fuel-oil-fired and gas-fired configurations
Technical Specifications When Treating Domestic Waste
- Temperature maintained at ≥850°C
- Flue gas residence time ≥2.0 seconds
- Incineration efficiency ≥99%
- Destruction and removal rate ≥99%
- Heat-reduction rate of incineration residues ≥5%
Model Specifications
| Specification | ZJS-30 | ZJS-100 | ZJS-200 | ZJS-300 | ZJS-500 |
|---|---|---|---|---|---|
| Handling Capacity (kg/times) | 30 - 80 | 100 - 150 | 200 - 300 | 300 - 400 | 400 - 550 |
| Size of Feeding Port (mm) | 480×600 | 760×960 | 900×1100 | 1080×1280 | 1300×1400 |
| Blower Power (kw) | 0.15 | 0.25 | 0.5 | 0.75 | 1.1 |
| Primary Burner | Power: 0.17KW Oil consumption: 4-6kg/h |
Power: 0.17KW Oil consumption: 4.5-10kg/h |
Power: 0.17KW Oil consumption: 6.5-14kg/h |
Power: 0.32kw Oil consumption: 6.5-14kg/h |
Power: 0.32kw Oil consumption: 6.5-14kg/h |
| Secondary Burner | Power: 0.17KW Oil consumption: 4-6kg/h |
Power: 0.17KW Oil consumption: 4.5-10kg/h |
- | - | - |
| Weight (t) | 3.1 | 4.5 | 8.6 | 13.7 | 18.9 |
| Chimney (mm) | 273 | 273 | - | - | - |
All technical specifications meet or exceed national standards, demonstrating high-efficiency harmless treatment capacity.
