180kw Temperature Control Fluid Bed Furnace Automatically Fluid Bed Boiler
| Place of Origin | China |
| Brand Name | Zoomline |
| Model Number | ZLFT-0.6㎡/1.1㎡/3㎡/5㎡/16㎡/32㎡ |
Product Details
Weight:
3.5-98t
Capacity:
0.1-60t/h
Power:
5.5-180kw
Diameter:
900-6400mm
Highlight:
automatically fluid bed boiler
,fluid bed furnace automatically
,temperature control fluid bed furnace
Payment & Shipping Terms
Minimum Order Quantity
a set
Price
Based on the actual circumstances
Packaging Details
Packing in wooden cases or plastic films
Delivery Time
20-50work days
Payment Terms
T/T,
Supply Ability
Two to five sets per month.
Product Description
180kw Temperature Control Fluid Bed Furnace Automatically Fluid Bed Boiler
Our 180kw Temperature Control Fluid Bed Furnace features an intelligent control system that automatically adjusts fuel supply and air volume to maintain optimal operating conditions. The boiling roaster (solid fluidized-bed roaster) uses controlled airflow to create intense roasting reactions on powdered materials.
Key Specifications
| Attribute | Value |
|---|---|
| Weight | 3.5-98t |
| Capacity | 0.1-60t/h |
| Power | 5.5-180kw |
| Diameter | 900-6400mm |
Available Models
- ZLFT-0.6㎡
- ZLFT-1.1㎡
- ZLFT-3㎡
- ZLFT-5㎡
- ZLFT-16㎡
- ZLFT-32㎡
Furnace Types
We offer two primary roaster configurations:
- Straight-cylinder roasters: Primarily used for roasting non-ferrous metal concentrates.
- Roasters with enlarged upper parts: Originally developed for crushing ore lumps (sulfuric acid production raw materials), now optimized for various floatation ores including non-ferrous metal concentrates and sulfur-rich ores.
Key Advantages
- High production intensity: Rapid reactions due to close contact between air and materials with intense relative movement.
- Exceptional heat transfer: Violent boiling action breaks particle isolation, creating contact surfaces of 3,280-49,200 m² per cubic meter.
- Material versatility: Particularly effective for rapid roasting of fine-grained materials.
- Operational simplicity: Designed for easy mechanization and automated operation.
Model Specifications
| Model | Diameter (mm) | Capacity (t/h) | Power (kw) | Weight (t) |
|---|---|---|---|---|
| ZLFT-0.6m² | 900 | 0.1-1.2 | 5.5-7.5 | 3.5 |
| ZLFT-1.1m² | 1200 | 0.3-2.7 | 11-15 | 5.9 |
| ZLFT-3m² | 2000 | 1.1-3.5 | 22-30 | 17 |
| ZLFT-5m² | 2600 | 3.8-7.9 | 30-45 | 26 |
| ZLFT-16m² | 4600 | 15-30 | 90-110 | 55 |
| ZLFT-32m² | 6400 | 26-60 | 132-180 | 98 |

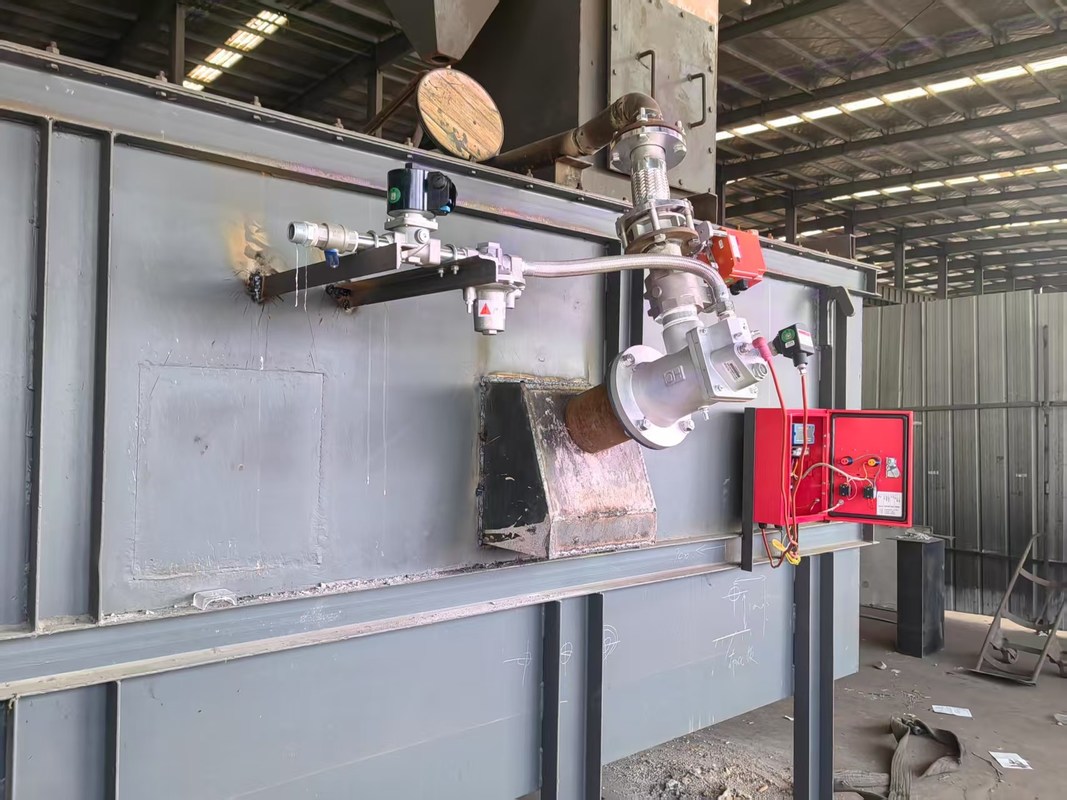

Product Images
