900 - 6400mm Fluidized Bed Roasting 0.1t/H - 60t/H Fluid Bed Furnace
|
900 - 6400mm Fluidized Bed Roasting 0.1t/H - 60t/H Fluid Bed Furnace
| Place of Origin | China |
| Brand Name | Zoomline |
| Model Number | ZLFT-0.6㎡/1.1㎡/3㎡/5㎡/16㎡/32㎡ |
Product Details
Weight:
3.5-98t
Capacity:
0.1-60t/h
Power:
5.5-180kw
Diameter:
900-6400mm
Highlight:
6400mm Fluidized Bed Roasting
,Fluidized Bed Roasting 0.1t/h
,60t/h fluid bed furnace
Payment & Shipping Terms
Minimum Order Quantity
a set
Price
Based on the actual circumstances
Packaging Details
Packing in wooden cases or plastic films
Delivery Time
20-50work days
Payment Terms
T/T,
Supply Ability
Two to five sets per month.
Product Description
900 - 6400mm Fluidized Bed Roasting 0.1t/H - 60t/H Fluid Bed Furnace
Product Overview
The boiling roaster, also known as a solid fluidized-bed roaster, uses air at a specific flow rate to carry out intense roasting reactions on powdered materials. During operation, materials remain in continuous motion, resembling the boiling state of a viscous liquid.
Key Specifications
| Attribute | Value |
|---|---|
| Weight | 3.5-98t |
| Capacity | 0.1-60t/h |
| Power | 5.5-180kw |
| Diameter | 900-6400mm |
Furnace Types
- Straight-cylinder roasters: Primarily used for roasting non-ferrous metal concentrates.
- Roasters with enlarged upper part: Originally designed for crushing ore lumps (sulfuric acid production raw materials). Later adapted for various floatation ores and sulfur-rich concentrates to improve ore grade.
Key Advantages
- High production intensity: Rapid reactions due to close contact between air and materials with intense relative movement.
- Exceptional heat transfer: Violent boiling action breaks particle isolation, creating contact surfaces of 3,280-49,200 m² per cubic meter.
- Material versatility: Particularly effective for rapid roasting of fine-grained materials.
- Operational efficiency: Simple operation with easy mechanization and automation.
Model Specifications
| Model | Diameter (mm) | Capacity (t/h) | Power (kw) | Weight (t) |
|---|---|---|---|---|
| ZLFT-0.6m² | 900 | 0.1-1.2 | 5.5-7.5 | 3.5 |
| ZLFT-1.1m² | 1200 | 0.3-2.7 | 11-15 | 5.9 |
| ZLFT-3m² | 2000 | 1.1-3.5 | 22-30 | 17 |
| ZLFT-5m² | 2600 | 3.8-7.9 | 30-45 | 26 |
| ZLFT-16m² | 4600 | 15-30 | 90-110 | 55 |
| ZLFT-32m² | 6400 | 26-60 | 132-180 | 98 |

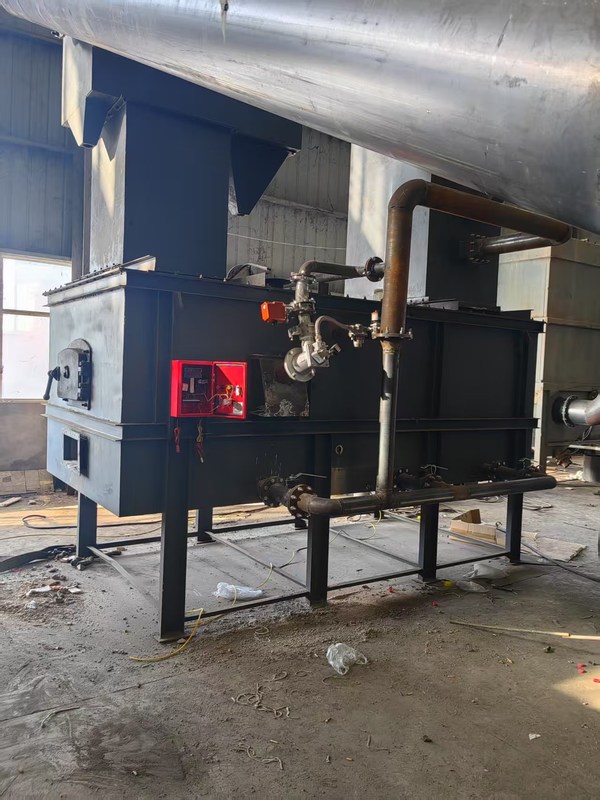

Product Gallery
