Oxidizing Sulfatizing Fluidised Bed Incineration Volatilizing Roasts Fluidised Bed Incineration
|
Oxidizing Sulfatizing Fluidised Bed Incineration Volatilizing Roasts Fluidised Bed Incineration
| Place of Origin | China |
| Brand Name | Zoomline |
| Model Number | ZLFT-0.6㎡ |
Product Details
Model:
ZLFT-0.6㎡
Diameter (mm):
900
Capacity(t/h):
0.1-1.2
Power(kw):
5.5-7.5
Weight(t):
3.5
Highlight:
sulfatizing fluidised bed incineration
,volatilizing roasts fluidised bed incineration
,oxidizing fluidised bed roaster
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Wooden box or film
Delivery Time
30-50 days
Payment Terms
T/T, Western Union
Supply Ability
Three sets per month
Product Description
Oxidizing Sulfatizing Fluidised Bed Incineration Volatilizing Roasts Fluidised Bed Incineration

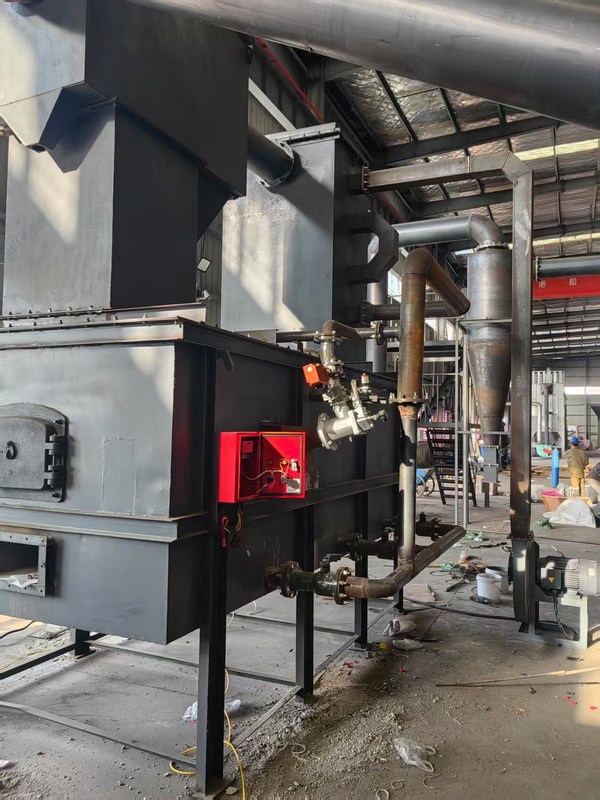

The fluidized-bed roasting system is designed for oxidizing, sulfatizing, and volatilizing roasts. Also known as a solid fluidized roaster, this equipment enables powdery materials to undergo intense calcination reactions under controlled airflow conditions, operating between a stationary fixed bed and an air transport bed.
Product Specifications
| Attribute | Value |
|---|---|
| Model | ZLFT-0.6㎡ |
| Diameter (mm) | 900 |
| Capacity (t/h) | 0.1-1.2 |
| Power (kw) | 5.5-7.5 |
| Weight (t) | 3.5 |
Operating Principle
During the roasting process, materials remain in constant motion - a state resembling the boiling of a viscous liquid, hence the name "boiling roaster".
Furnace Types
The system is available in two configurations:
- Straight Type Furnace: Primarily used for non-ferrous metal concentrates roasting with lower calcination intensity. Features a cylindrical design with minimal upper enlargement.
- Upper Enlarged Furnace: Originally developed for pyrite roasting in sulfuric acid production, now adapted for various flotation concentrates. Offers high calcination intensity and superior performance with fine materials.
Key Advantages
- High Production Intensity: Efficient air-material contact and vigorous relative motion enable rapid reactions and superior unit area productivity.
- Enhanced Heat/Mass Transfer: Boiling action increases material surface area up to 32,800-49,200m² per cubic meter, accelerating reaction rates.
- Material Versatility: Particularly effective for rapid calcination of fine materials.
- Operational Efficiency: Simplified operation with easy mechanization and automation capabilities.
Model Specifications
| Model | Diameter (mm) | Capacity (t/h) | Power (kw) | Weight (t) |
|---|---|---|---|---|
| ZLFT - 0.6m² | 900 | 0.1 - 1.2 | 5.5 - 7.5 | 3.5 |
| ZLFT - 1.1m² | 1200 | 0.3 - 2.7 | 11 - 15 | 5.9 |
| ZLFT - 3m² | 2000 | 1.1 - 3.5 | 22 - 30 | 17 |
| ZLFT - 5m² | 2600 | 3.8 - 7.9 | 30 - 45 | 26 |
| ZLFT - 16m² | 4600 | 15 - 30 | 90 - 110 | 55 |
| ZLFT - 32m² | 6400 | 26 - 60 | 132 - 180 | 98 |
