ZLFT Fluidized Bed Roasting 0.6m2 1.1m2 3m2 Boiling Roaster
|
ZLFT Fluidized Bed Roasting 0.6m2 1.1m2 3m2 Boiling Roaster
| Place of Origin | China |
| Brand Name | Zoomline |
| Certification | JY001-2018Q0023 |
| Model Number | ZLFT-0.6㎡/1.1㎡/3㎡/5㎡/16㎡/32㎡ |
Product Details
Weight:
3.5-98t
Capacity:
0.1-60t/h
Power:
5.5-180kw
Diameter:
900-6400mm
Highlight:
ZLFT Fluidized Bed Roasting
,3m2 Fluidized Bed Roasting 0.6m2
,3m2 boiling roaster
Payment & Shipping Terms
Minimum Order Quantity
a set
Price
Based on the actual circumstances
Packaging Details
Packing in wooden cases or plastic films
Delivery Time
20-50work days
Payment Terms
T/T,
Supply Ability
Two to five sets per month.
Product Description

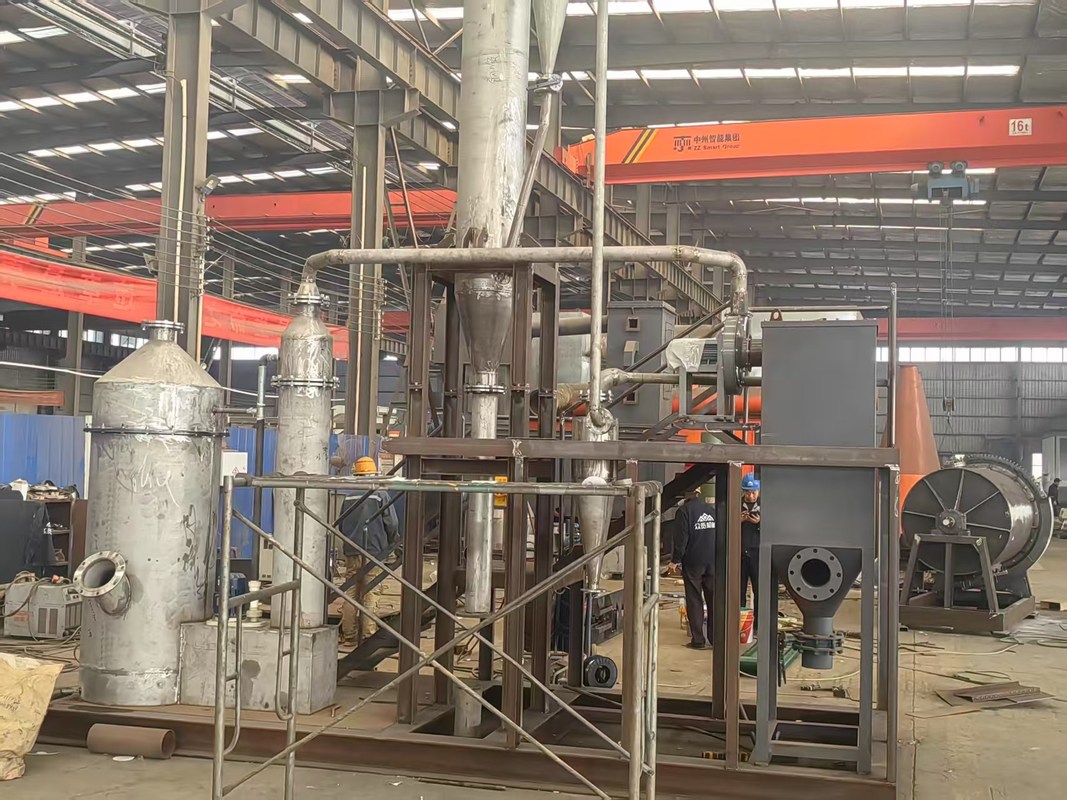

ZLFT Fluidized Bed Roasting 0.6m² 1.1m² 3m² Boiling Roaster
The boiling roaster (also known as a solid fluidized-bed roaster) uses air at controlled flow rates to facilitate intense roasting reactions on powdered materials. During operation, materials maintain continuous motion similar to the boiling state of viscous liquids, hence the name "boiling roaster".
Product Specifications
| Attribute | Value |
|---|---|
| Weight | 3.5-98t |
| Capacity | 0.1-60t/h |
| Power | 5.5-180kw |
| Diameter | 900-6400mm |
Furnace Types
Two primary configurations are available:
- Straight-cylinder roasters: Primarily used for roasting non-ferrous metal concentrates.
- Roasters with enlarged upper parts: Originally designed for processing ore lumps (sulfuric acid production raw materials), now widely used for various floatation ores including non-ferrous metal concentrates and sulfur-rich ores.
Key Advantages
- High production intensity: Rapid reactions due to optimal air-material contact and relative movement.
- Superior heat transfer: Violent boiling action breaks particle isolation, creating contact surfaces of 3,280-49,200 m² per cubic meter.
- Material versatility: Particularly effective for fine-grained materials.
- Operational efficiency: Simple operation with easy mechanization and automation.
Model Specifications
| Model | Diameter (mm) | Capacity (t/h) | Power (kw) | Weight (t) |
|---|---|---|---|---|
| ZLFT-0.6m² | 900 | 0.1-1.2 | 5.5-7.5 | 3.5 |
| ZLFT-1.1m² | 1200 | 0.3-2.7 | 11-15 | 5.9 |
| ZLFT-3m² | 2000 | 1.1-3.5 | 22-30 | 17 |
| ZLFT-5m² | 2600 | 3.8-7.9 | 30-45 | 26 |
| ZLFT-16m² | 4600 | 15-30 | 90-110 | 55 |
| ZLFT-32m² | 6400 | 26-60 | 132-180 | 98 |
